Dimak Stainless Steel Doors are manufactured with high quality and long-lasting materials and in addition to standard sizes, they can also be supplied with special sizes, features and accessories according to customer demands.
DİMAK DOOR
Stainless Steel Door Features
Dimak Stainless Steel Doors can be produced with the desired features, dimensions and accessories, in addition to standard sizes and features, upon request.
Corrosion Resistant
Customer Specific Sizes
Quick Delivery in Standard Sizes
Reversible Door Option
DİMAK DOOR
Stainless Steel Door Frames and Leaves
The frames and leaves of Dimak stainless steel doors are designed to offer durability, security and ease of installation.
Rigid Structure
The door frame and leaf have a very rigid structure with their special section design.
Strength
The door leaf is 63 mm thick.
Safety Bolls
There are 2 safety pins on the hinge side of the door leaves.
Modular Design
The door frames are designed as three-piece, demountable versions. Assembly of the frame parts is very practical, like Lego bricks.
Optional Hardware
Support plates are provided in appropriate locations within the door leaves for mounting accessories and hydraulic closers.
Weather Seal Slots
Weather seal slots are present on the door frame.
Air and Sound Insulation
On request, air and sound insulating seals provided.
Optimum Sheet Thickness
Thanks to its corner bends and special design, high strength is achieved with 0.8 mm sheet metal, preventing the risk of bending or opening during a fire.
Corrosion Resistant
It is resistant to external effects such as moisture and harsh weather conditions and is resistant to problems such as rust and decay.

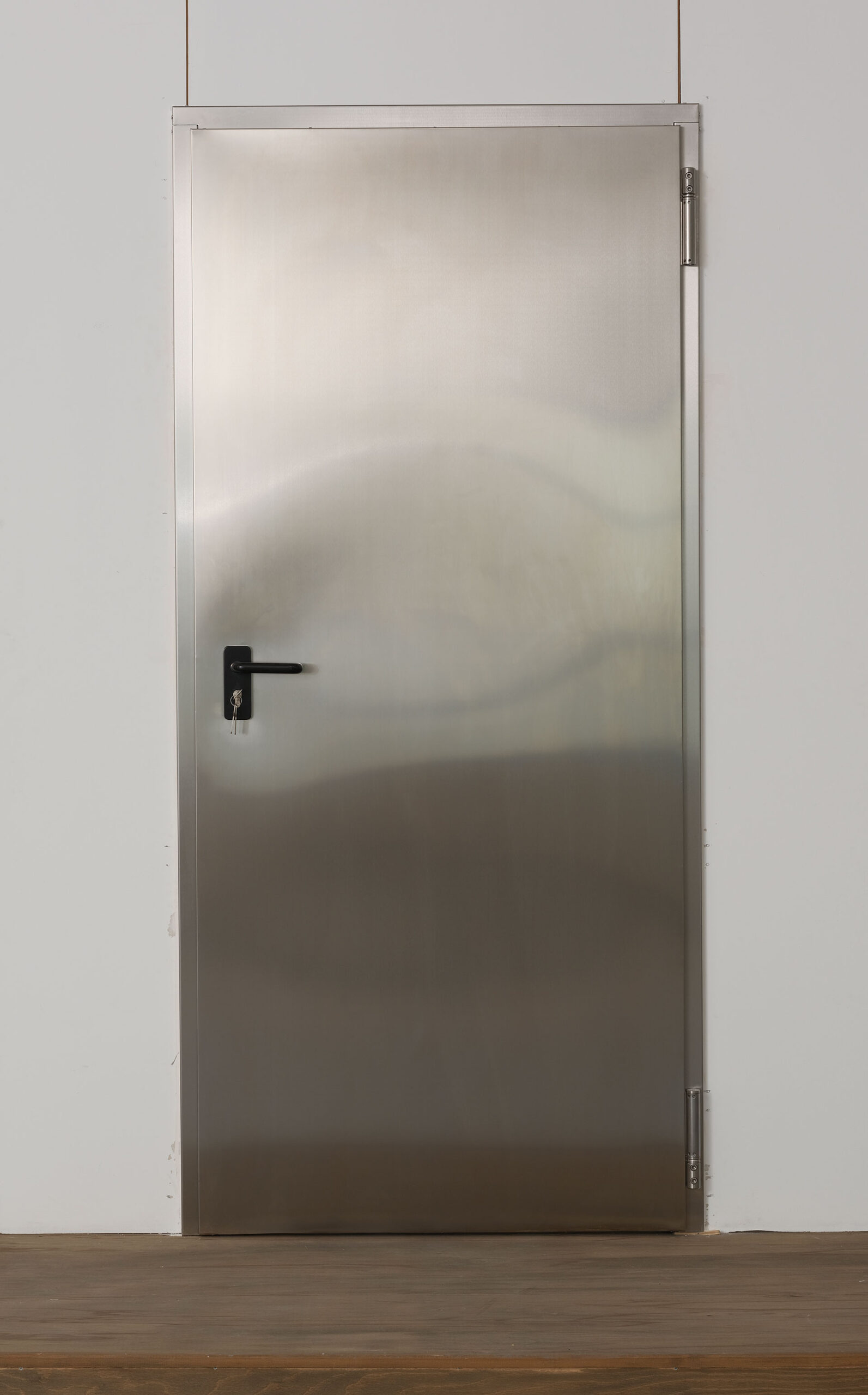

Corner Frame Stainless Steel Doors
The stainless steel doors with corner frames are suitable for any wall thickness as a standard.
Full Frame Stainless Steel Doors
The stainless steel doors can be produced with full frame option that covers the whole wall with extra frame profiles.

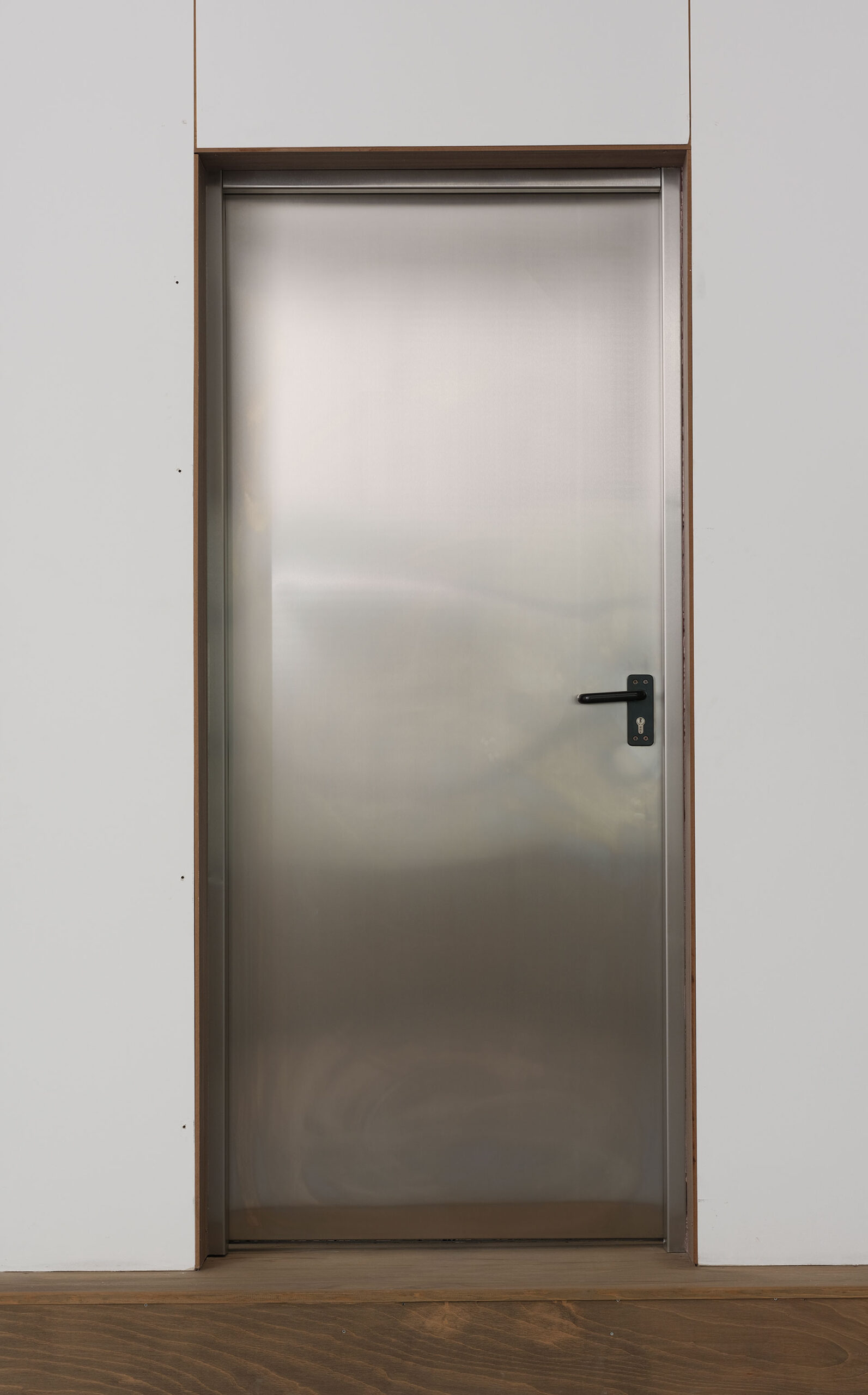

Block Frame Stainless Steel Doors
The stainless steel doors can be easily installed in corridor type wall openings without protrusions, thanks to the block frame.
DİMAK DOOR
Stainless Steel Door Accessories
The demountable structure of the frames provides space saving and cost advantage in transportation.
Hinge
Dimak stainless steel doors use heavy-duty hinges with special bearings.
Spring Hinge
Spring hinges used on the doors ensure that the stainless steel doors remain closed at all times.
High Quality
The high-quality accessory sets used on the doors have some unique features.

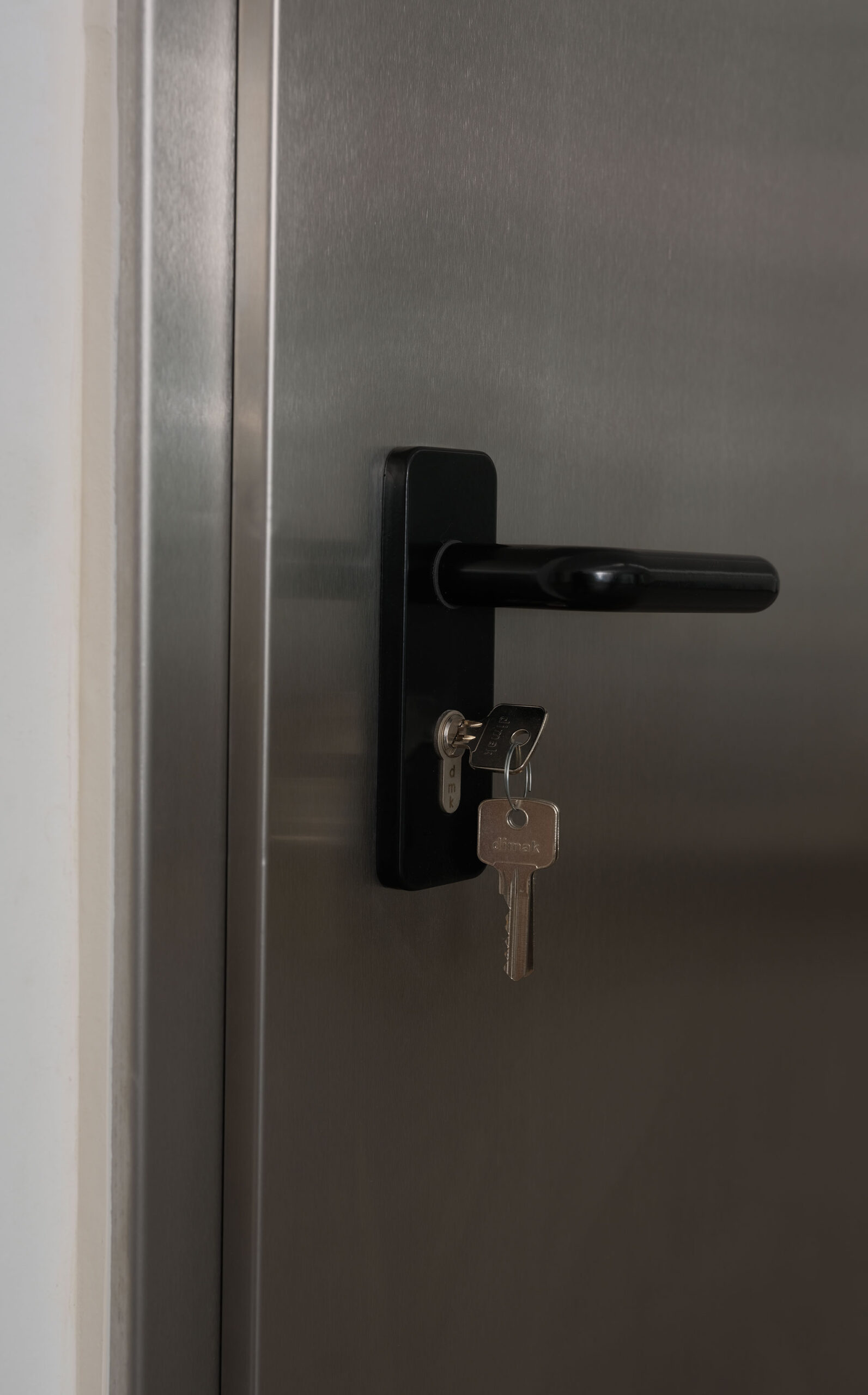

Lock System
Stainless steel doors are shipped with a lock, handle set (or panic bar set), cylinder and 3 keys as standard.
Lock System
Dimak lock system is specially designed to be used as left / right.
Lock System
Dimak lock system is specially designed to be used as panic / anti-panic.
Mono Block Body
The mono block body structure is provided by connecting the handle system or panic bar system to each other with 4 bolts passing through the lock.
Long-Lasting
Thanks to its mono block structure, problems such as the arm peeling off the wing are eliminated and a strong and long-lasting accessory system is obtained.
Stainless
The handle and panic bar system is made of cast aluminum and can be used without any problems in all climatic conditions thanks to its stainless steel structure.
Color Options
Although the standard accessory color is black, any RAL color can be applied for larger projects.
Windows
Windows can be installed on stainless steel doors. Window sizes in stock are 500x500 mm and 300x400 mm.
Louvers
Louvers can be applied on stainless steel doors.
DİMAK DOOR
Stainless Steel Door Packaging
Dimak stainless steel doors offer a fast, durable and economical installation thanks to their demountable structure and practical installation details.
Protective Packaging
The door frame and wings are packaged with thick packaging nylon; this packaging protects the door from damage after installation.
Efficient Shipping
Doors are shipped on pallets; each pallet can carry 15 sets of single-wing doors.
Disassembled Design Advantage
The demountable structure of the cases provides space saving and cost advantage in transportation.
DİMAK DOOR
Stainless Steel Door Installation
Dimak stainless steel doors offer a fast, durable and economical installation thanks to their demountable structure and practical installation details.
Easy and Economical Installation
The safes are mounted directly to the wall using universal dowels inserted into the slots. No additional mounting profiles are required, providing a cost advantage.
Logistics Advantage with Demountable Design
The crates are a three-piece, demountable structure. They assemble easily, like Lego. This design makes transportation and storage much easier.
Strong and Durable Structure
Dimak's unique lower lug design secures the chassis to the ground, creating a strong connection to the structure. This prevents bending and twisting issues that may occur over time.
