Double Leaf Panic Hardware Fire Door

Dimak fire doors have half (corner) frames suitable for any wall thickness as a standard. If a full frame is requested, the fire doors can be made suitable for a full frame covering the whole wall with the extra profile frames provided. Direction and wall thickness information is important when ordering full frame. The frames are adjustable and the adjustment range is +/- 15 mm.

Galvanized steel is used in the production of door frames and door leaves therefore the doors are highly enduring to corrosion.

Coordinator can be installed to the double winged doors in order for the door leaves to close in coordination. (Optional)

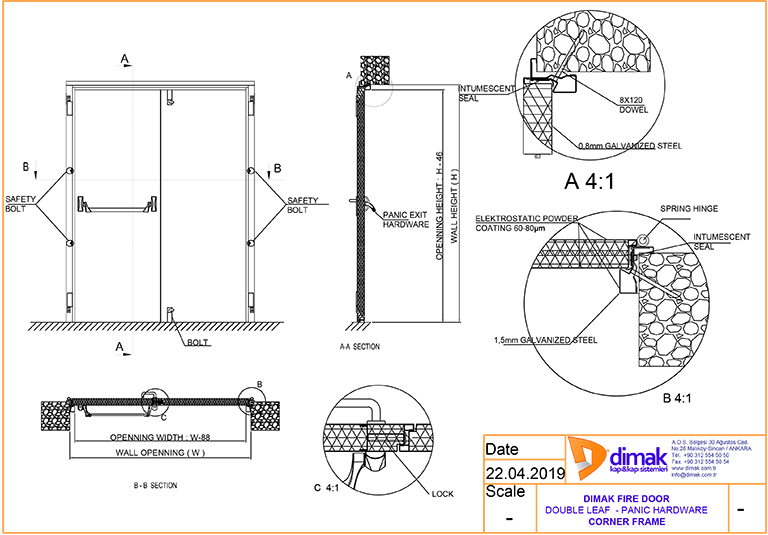

Dimak Fire Door Double Leaf Panic Bar Corner Frame Drawing
Dimak Fire Door Double Leaf Panic Bar Corner Frame Drawing

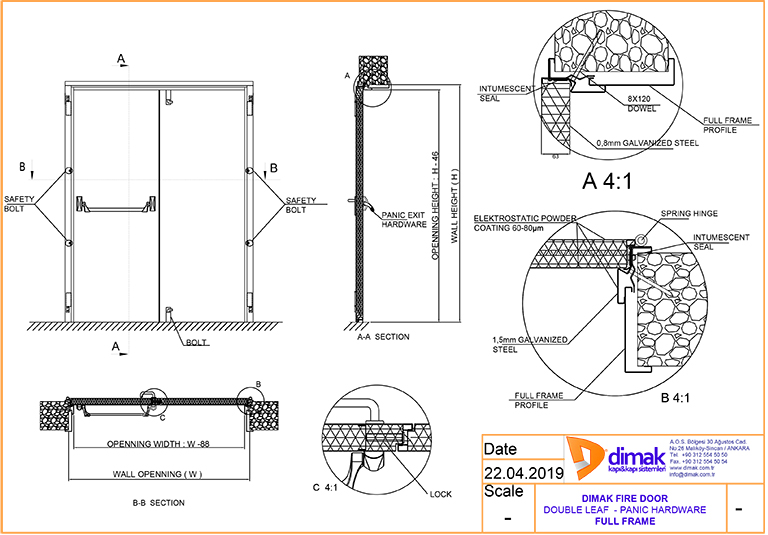

Dimak Fire Door Double Leaf Panic Bar Full Frame Drawing
Dimak Fire Door Double Leaf Panic Bar Full Frame Drawing
