Single Leaf Panic Hardware Fire Door

Dimak fire doors have half (corner) frames suitable for any wall thickness as a standard. If a full frame is requested, the fire doors can be made suitable for a full frame covering the whole wall with the extra profile frames provided. Direction and wall thickness information is important when ordering full frame. The frames are adjustable and the adjustment range is +/- 15 mm.

Windows and aluminium or fire-rated louvers can be applied to single leaf panic bar fire doors.

Dimak Fire Door Single Leaf Panic Bar Corner Frame Drawing
Dimak Fire Door Single Leaf Panic Bar Corner Frame Drawing

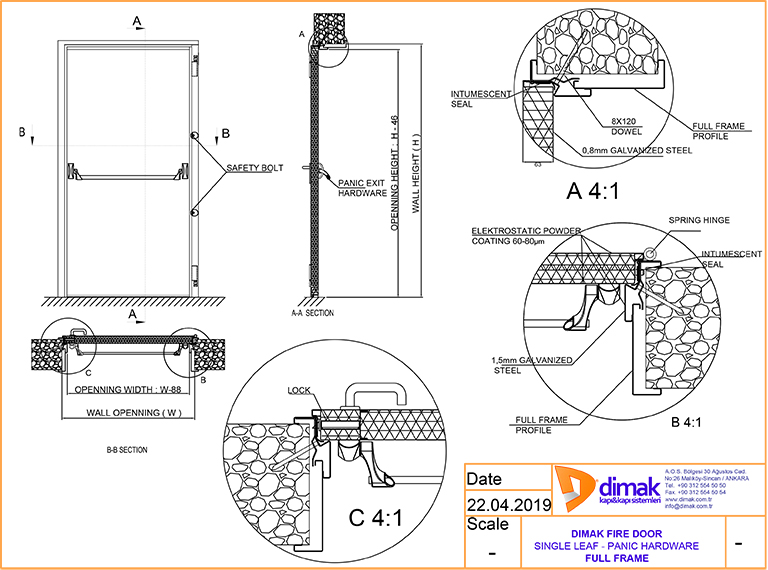

Dimak Fire Door Single Leaf Panic Bar Full Frame Drawing
Dimak Fire Door Single Leaf Panic Bar Full Frame Drawing
